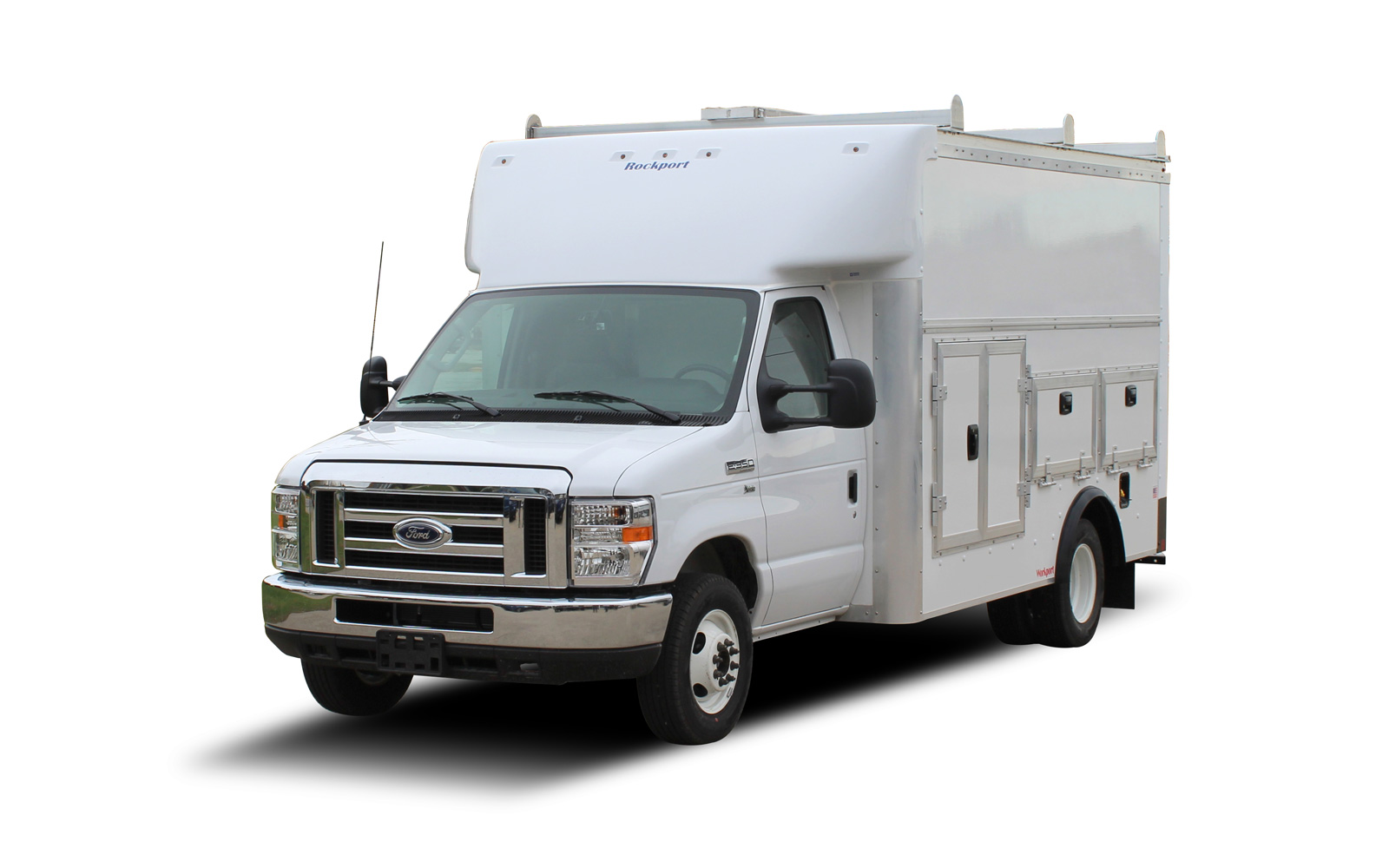

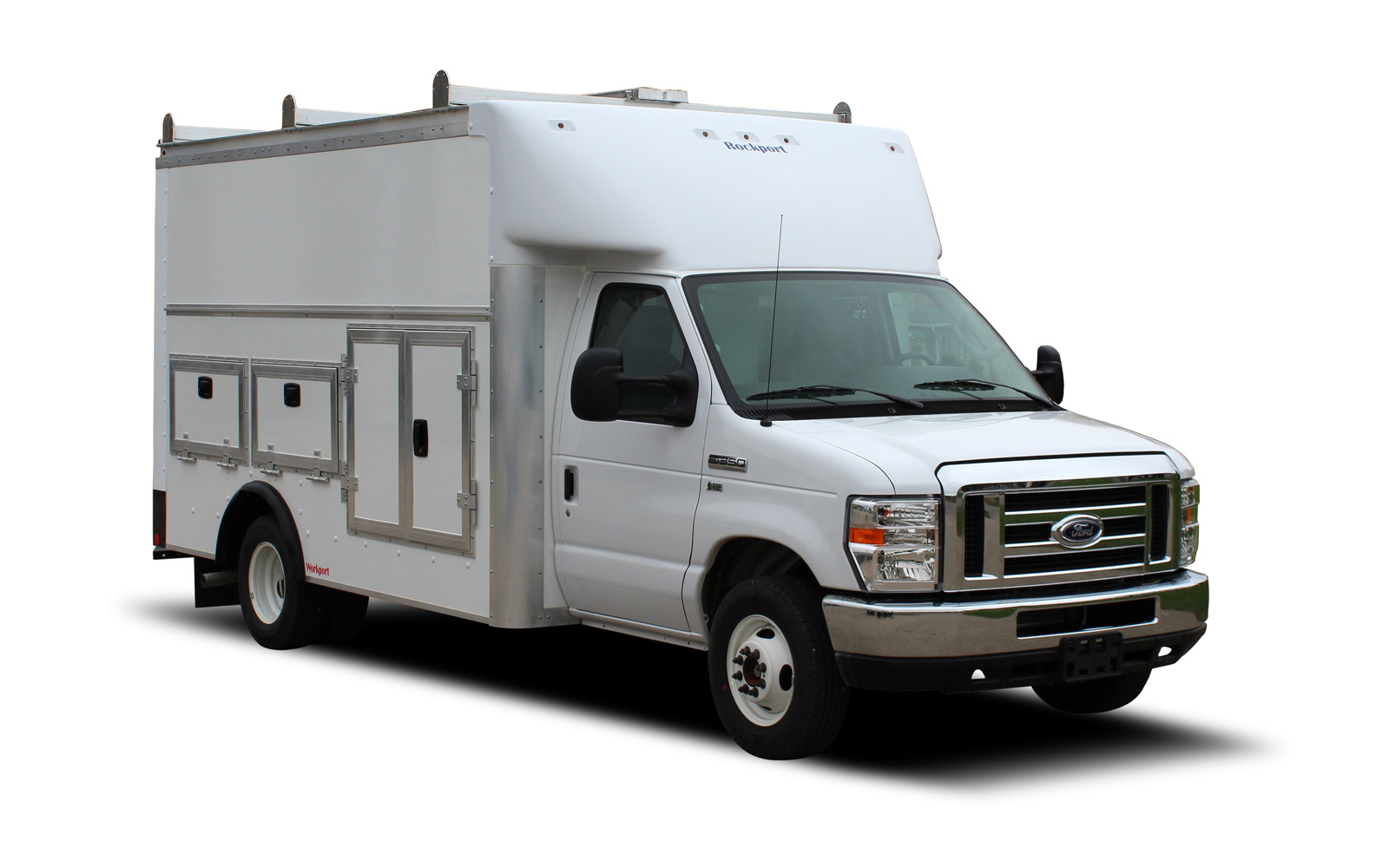

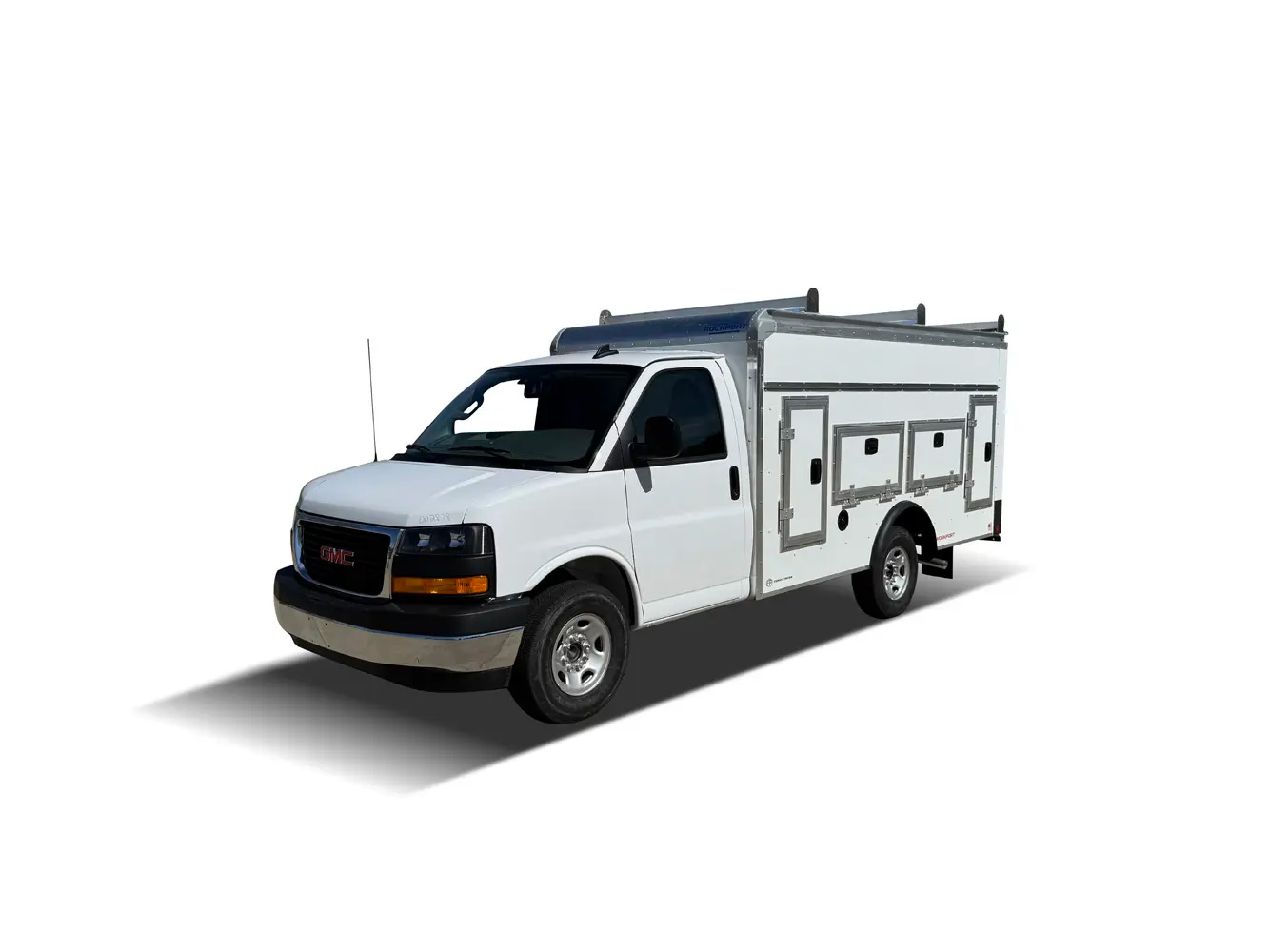

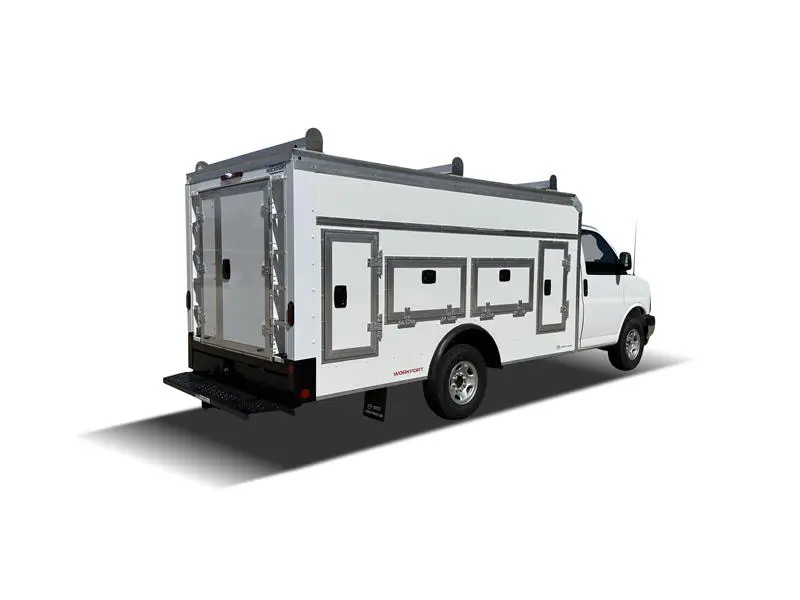

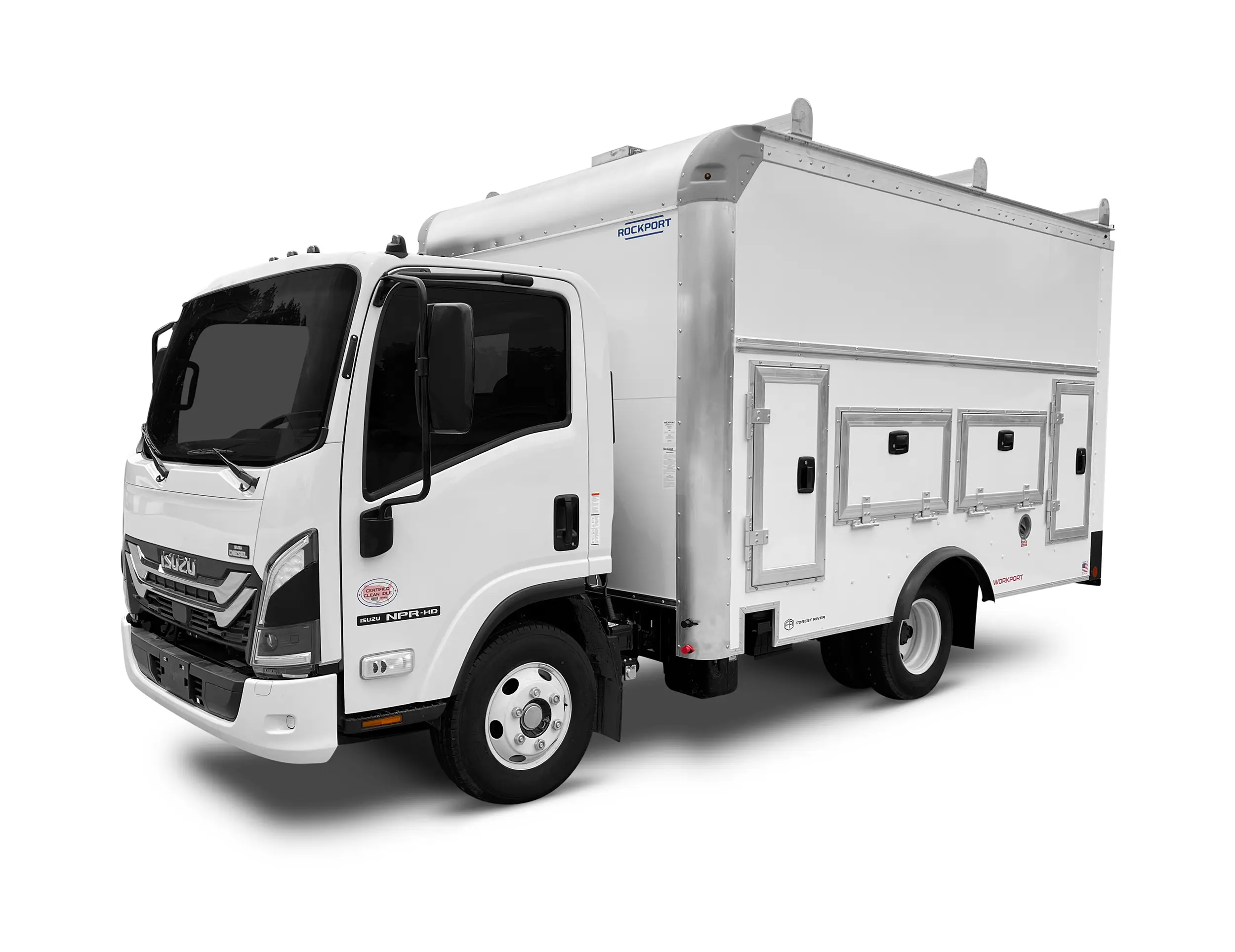

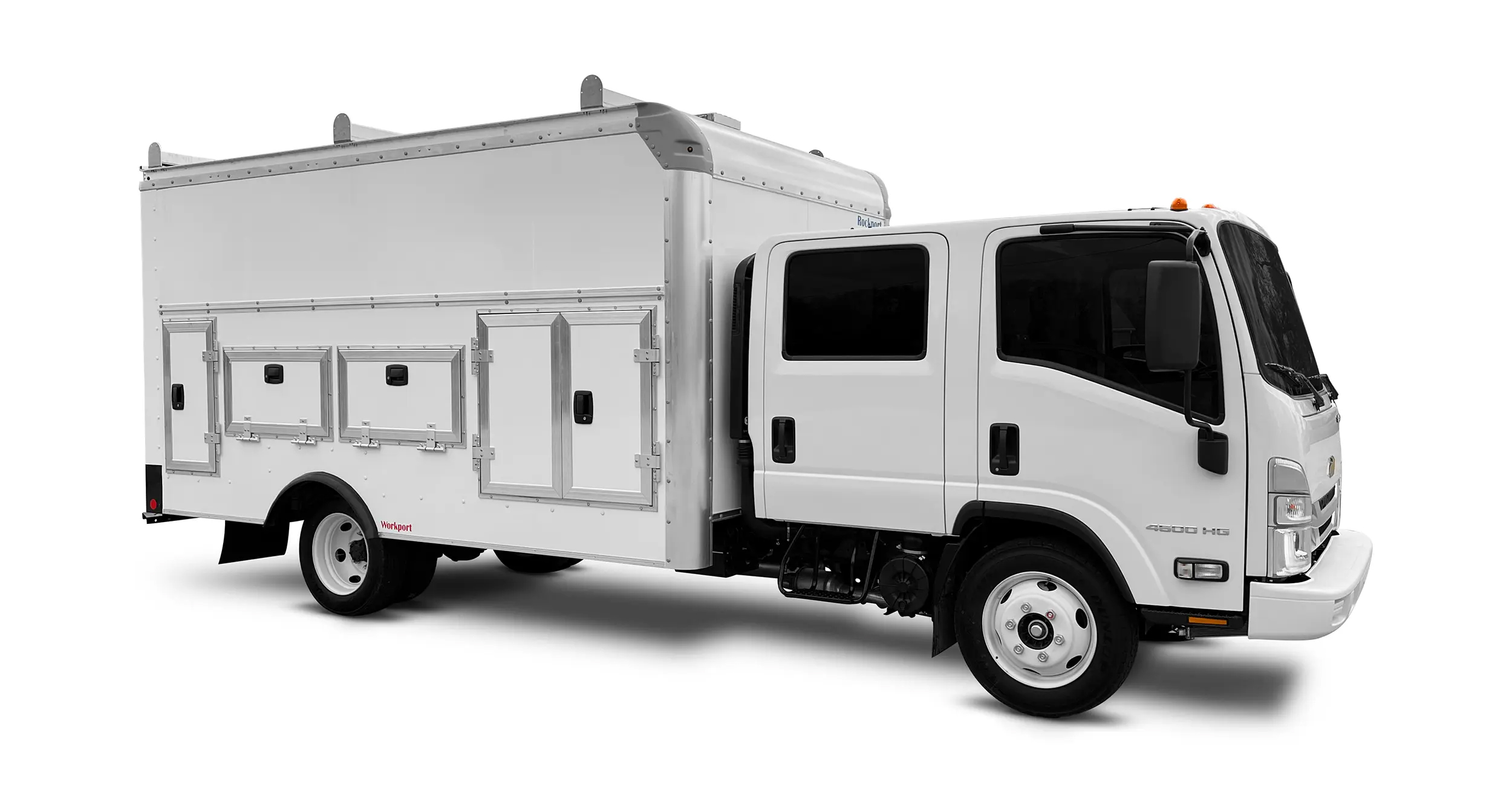

ENCLOSED SERVICE BODY; RUGGED INSIDE AND OUT

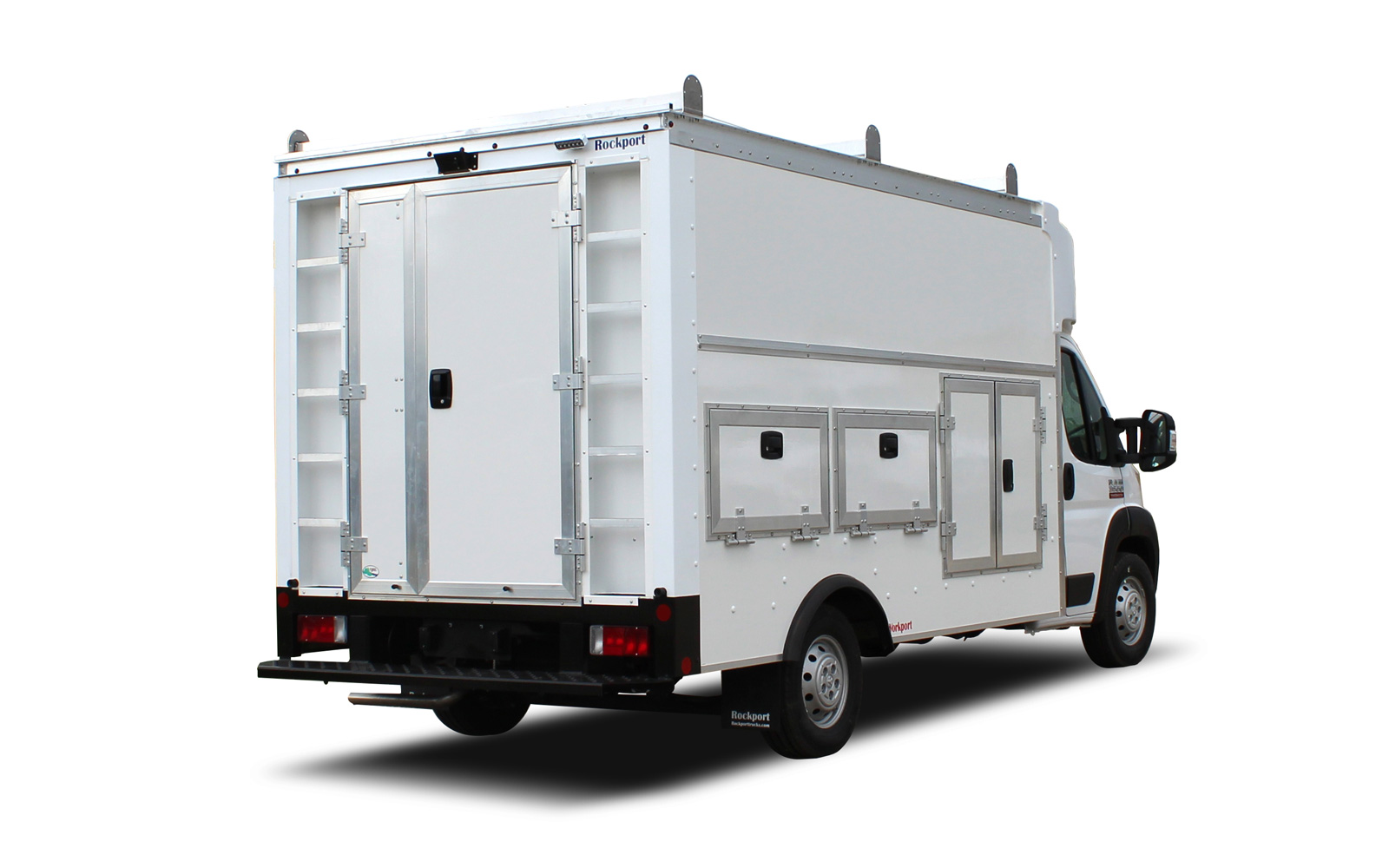

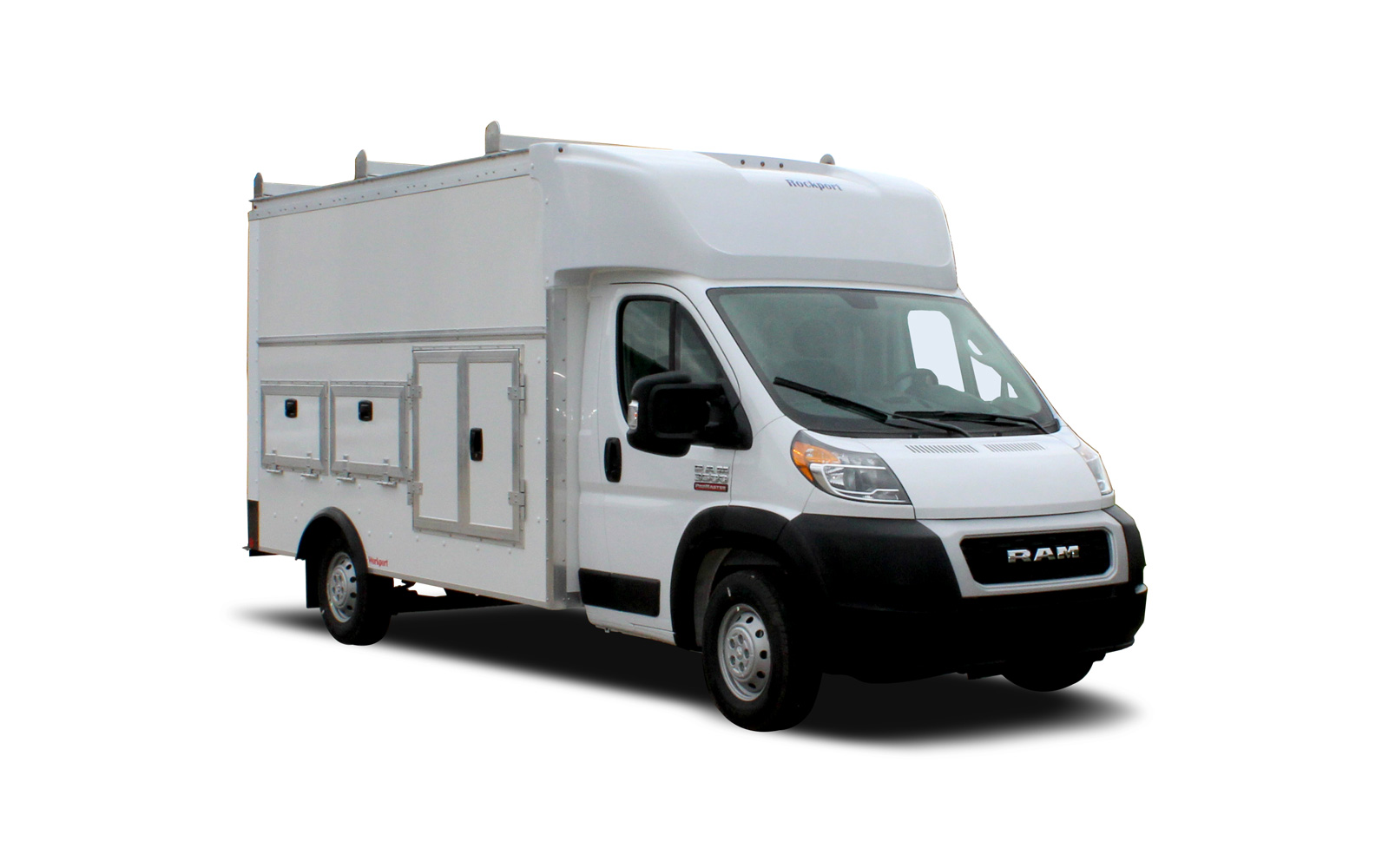

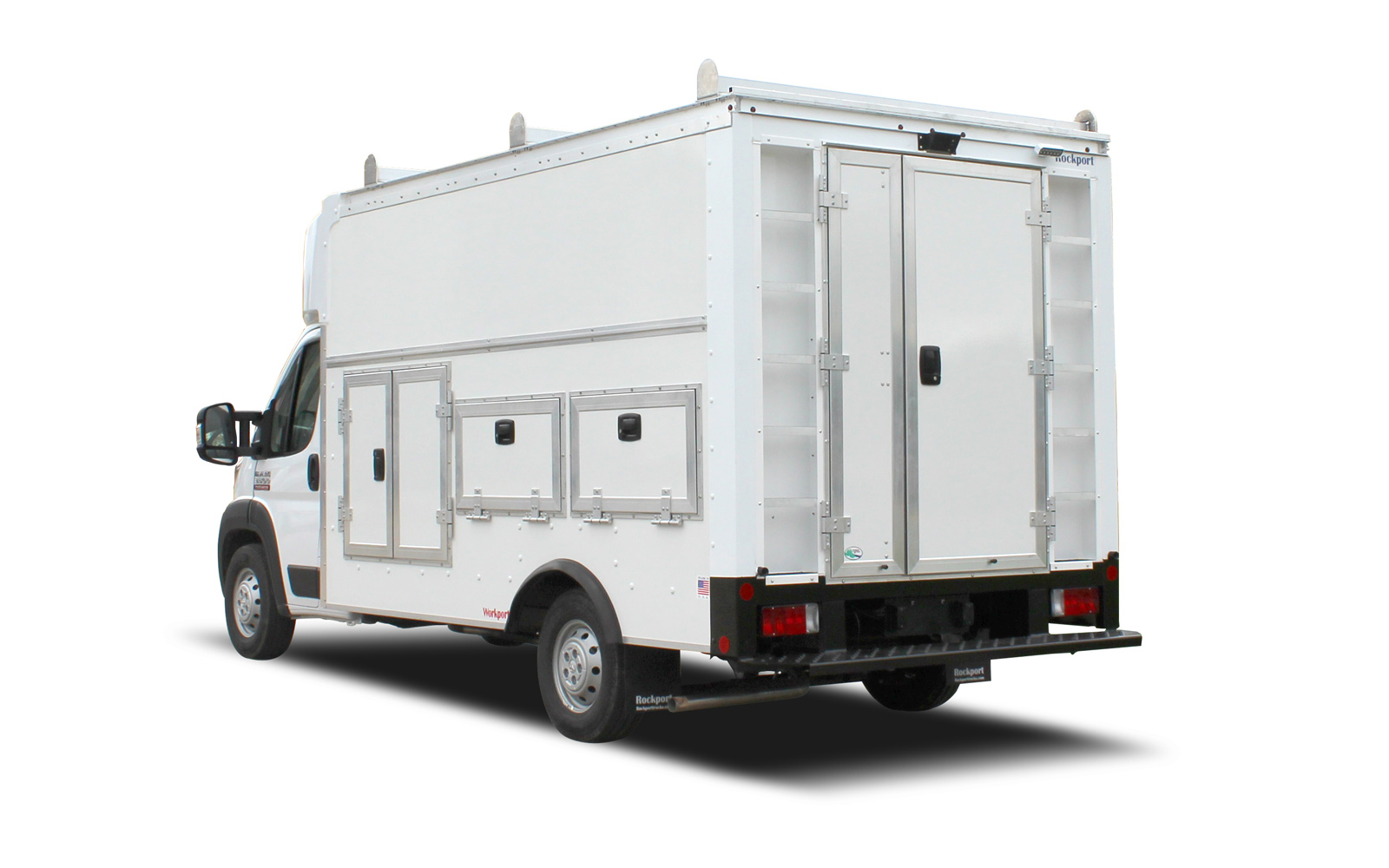

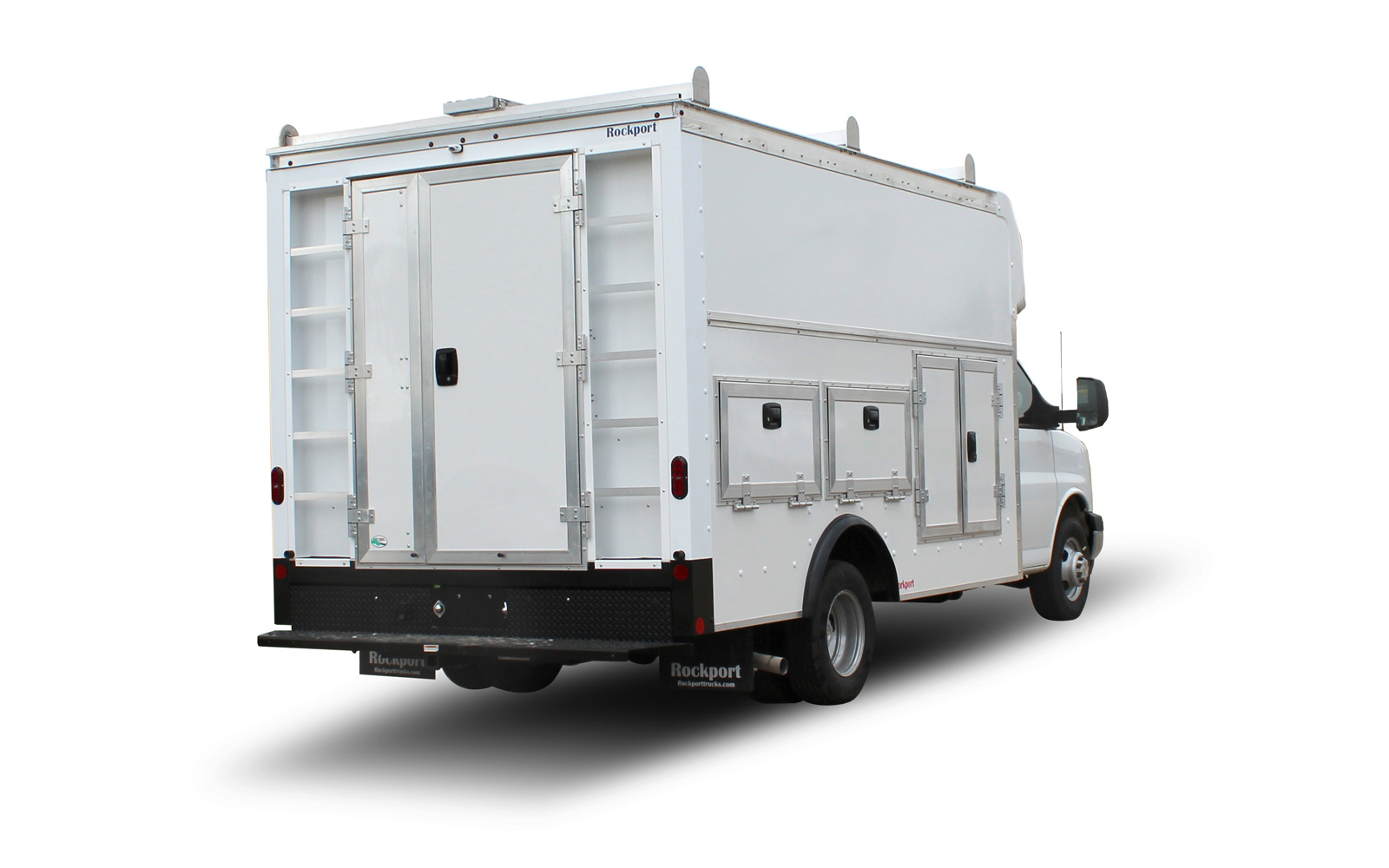

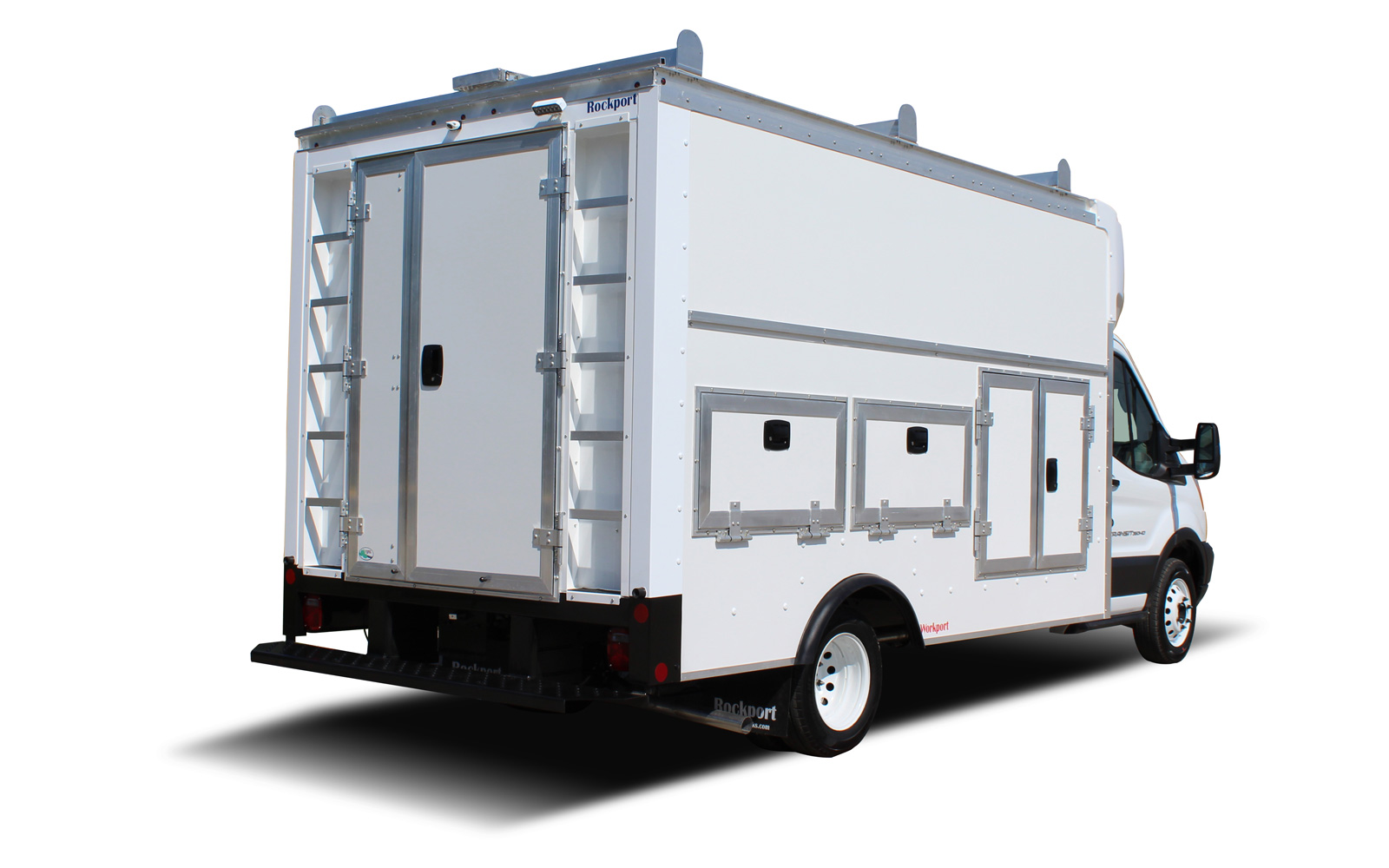

A true workshop on wheels, the ergonomically designed Workport provides both an exceptional and functional way to service your customers. A stand up interior height, heavy duty door hinges and integrated rear access ladders are just a few aspects customers favor. The exterior compartments provide ease of access with the convenience of available power locks to keep valuable cargo secure at the push of a button. The flexible Workport can be tailored to your specific needs with available shelving, lighting, accessibility, cargo control and many other features to make this product truly unique to your line of work.

VIEW THE TOP REASONS TO BUY WORKPORT

Specifications



Pool Chassis Options:

 Click on a chassis to view specs
NOTE – Dimensions reflected are for 2027 E-Series chassis changes.

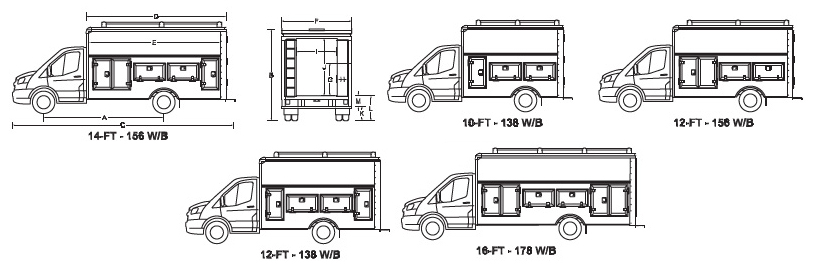

Interior Height:
(A) Wheel Base:
(B) Body Height:
(C) Truck Length:
(D) Overall Body Length:
(E) True Body Length:
(F) Body Width:
(G) Compartment Height:
(H) Compartment Depth:
(I) Door Opening Width:
(J) Door Opening Height:
(K) Ground To Bumper:
(L) Ground To Floor:
(M) Bumper To Floor:
10' SRW
6' 6"
138"
118"
19' 6"
11'
10'
80"
42.5"
12.125"
47.5"
71.5"
17.25"
31.5"
14.25"
12' SRW
6' 6"
138"
118"
21' 6"
13'
12'
80"
42.5"
12.125"
47.5"
71.5"
17.25"
31.5"
14.25"
10' DRW
6' 6"
138"
118"
19' 6"
11'
10'
96"
42.5"
20.625"
47.5"
71.5"
17.25"
31.5"
14.25"
12' DRW
6' 6"
138" Or 158"
118"
21' 6"
13'
12'
96"
42.5"
20.625"
47.5"
71.5"
17.25"
31.5"
14.25"
14' DRW
6' 6"
158"
118"
23' 6"
15'
14'
96"
42.5"
20.625"
47.5"
71.5"
17.25"
31.5"
14.25"
16' DRW
6' 6"
176"
118"
25' 6"
17'
16'
96"
42.5"
20.625"
47.5"
71.5"
17.25"
31.5"
14.25"
Mesurements

Interior Height:
(A) Wheel Base:
(B) Body Height:
(C) Truck Length:
(D) Overall Body Length:
(E) True Body Length:
(F) Body Width:
(G) Compartment Height:
(H) Compartment Depth:
(I) Door Opening Width:
(J) Door Opening Height:
(K) Ground To Bumper:
(L) Ground To Floor:
(M) Bumper To Floor:
10' SRW
6' 6"
138"
119"
20'
11'
10'
80"
42.5"
12.125"
47.5"
72.5"
16.44"
29.56"
13.12"
12' SRW
6' 6"
138"
119"
22'
13'
12'
80"
42.5"
12.125"
47.5"
72.5"
16.44"
29.56"
13.12"
10' DRW
6' 6"
138"
119"
20'
11'
10'
96"
42.5"
20.625"
47.5"
72.5"
16.44"
29.56"
13.12"
12' DRW
6' 6"
138" Or 158"
119"
22'
13'
12'
96"
42.5"
20.625"
47.5"
72.5"
16.44"
29.56"
13.12"
Mesurements

Interior Height:
(A) Wheel Base:
(B) Body Height:
(C) Truck Length:
(D) Overall Body Length:
(E) True Body Length:
(F) Body Width:
(G) Compartment Height:
(H) Compartment Depth:
(I) Door Opening Width:
(J) Door Opening Height:
(K) Ground To Bumper:
(L) Ground To Floor:
(M) Bumper To Floor:
10' SRW
6' 6"
139"
121"
20'
11'
10'
80"
42.25"
12.25"
47.5"
71.75"
18"
32"
14"
12' SRW
6' 6"
139"
121"
22'
13'
12'
80"
42.25"
12.25"
47.5"
71.75"
18"
32"
14"
14' SRW
6' 6"
159"
121"
24'
15'
14'
80"
42.25"
12.25"
47.5"
71.75"
18"
32"
14"
10' DRW
6' 6"
139"
121"
20'
11'
10'
96"
42.25"
22.5"
47.5"
71.75"
18"
32"
14"
12' DRW
6' 6"
139"
121"
22'
13'
12'
96"
42.25"
22.5"
47.5"
71.75"
18"
32"
14"
12' 6" DRW
6' 6"
159"
121"
22' 6"
13' 6"
12' 6"
96"
42.25"
22.5"
47.5"
71.75"
18"
32"
14"
14' DRW
6' 6"
159"
121"
24'
15'
14'
96"
42.25"
22.5"
47.5"
71.75"
18"
32"
14"
16' DRW
6' 6"
177"
121"
26'
17'
16'
96"
42.25"
22.5"
47.5"
71.75"
18"
32"
14"
Mesurements

Interior Height:
(A) Wheel Base:
(B) Body Height:
(C) Truck Length:
(D) Overall Body Length:
(E) True Body Length:
(F) Body Width:
(G) Compartment Height:
(H) Compartment Depth:
(I) Door Opening Width:
(J) Door Opening Height:
(K) Ground To Bumper:
(L) Ground To Floor:
(M) Bumper To Floor:
10' SRW
6' 6"
136"
120"
19' 6"
11'
10'
90"
42.5"
20.625"
47.5"
71.25"
15.25"
29"
13.75"
12' SRW
6' 6"
136"
120"
21' 6"
13'
12'
90"
42.5"
20.625"
47.5"
71.25"
15.25"
29"
13.75"
12' SRW
6' 6"
159"
120"
21' 6"
13'
12'
90"
42.5"
20.625"
47.5"
71.25"
15.25"
29"
13.75"
Mesurements

Drop Ship Chassis Options:
Autocar, Freightliner, Mitsubishi Fuso, Hino, International Trucks, Isuzu, Kenworth, Mack, Nissan, Mercedes-Benz Sprinter, Peterbilt, Volvo, Western Star, Motiv Electric.


STANDARD FEATURES & UPGRADE OPTIONS

Print
Standard
  • Aerodynamic Aluminum Top Radius
  • Extruded Aluminum Front Corner Posts
  • High Impact Resistant Front Corner Caps
  • FRP Front Wall

Options
  • Rocktop Air Fairing with Full Height Access Door
  • Rocktop Air Faring with No Cab Roof Cutout
  • Front Cabover “Attic” - 36”
  • Nose Cone
Standard

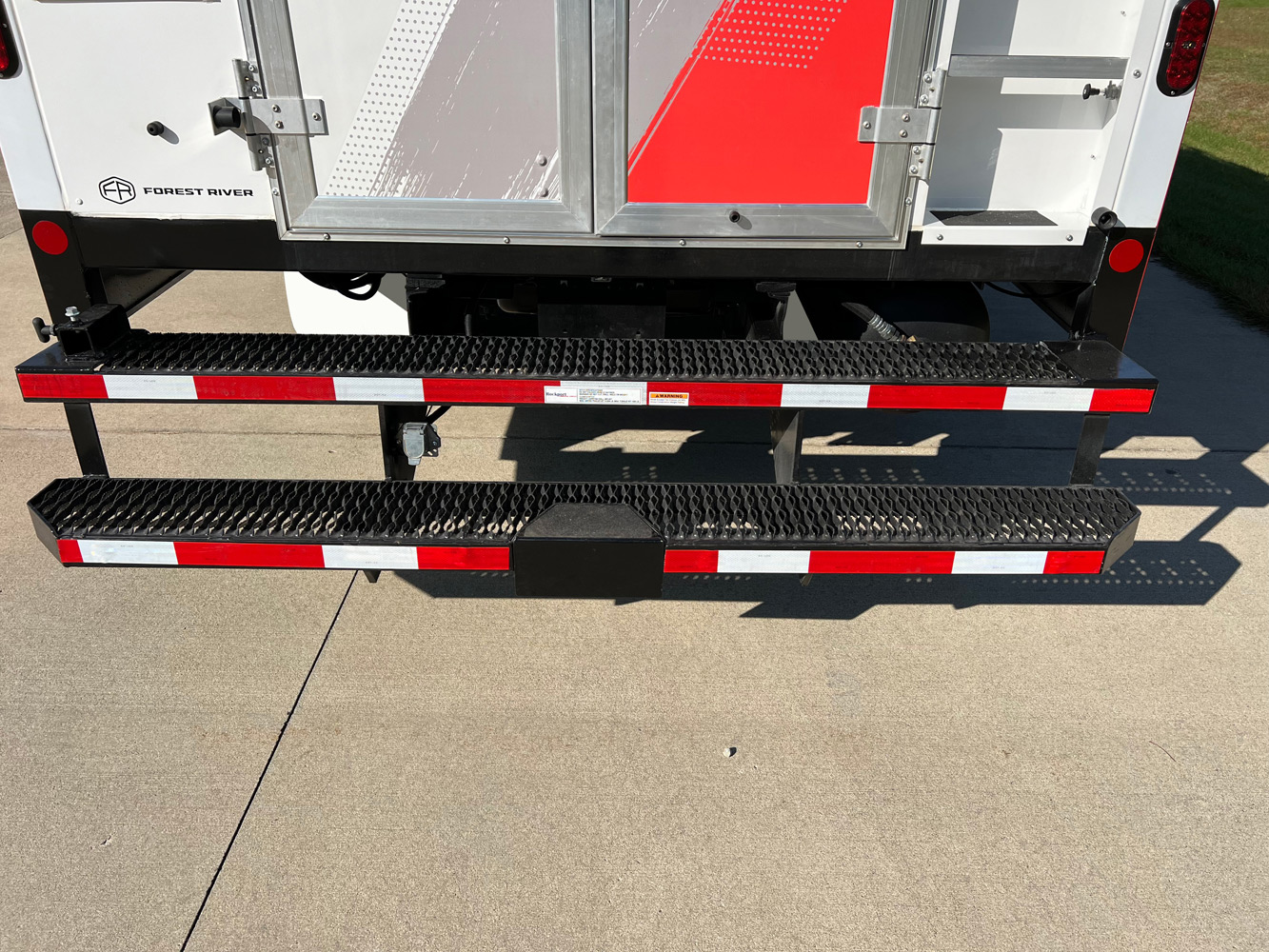

  • Full Width 12” Steel Pooched Step Bumper, Finished Black

Options
  • Grip Strut Bumper, Steel or Aluminum
  • Rubber Dock Bumpers
  • Class-3 Receiver Hitch
  • Electric Brake Controller
Options
  • Front End Alignment – Performed on a Hunter Alignment System
  • Chassis PDI
  • DOT Inspection
  • Additional Chassis Leaf Springs
  • On-Star Relocation (GM Product Only)
  • Satellite Antenna Radio Relocation
  • Chrome Wheel Simulators
  • Sumo Springs
  • Super Springs
Standard

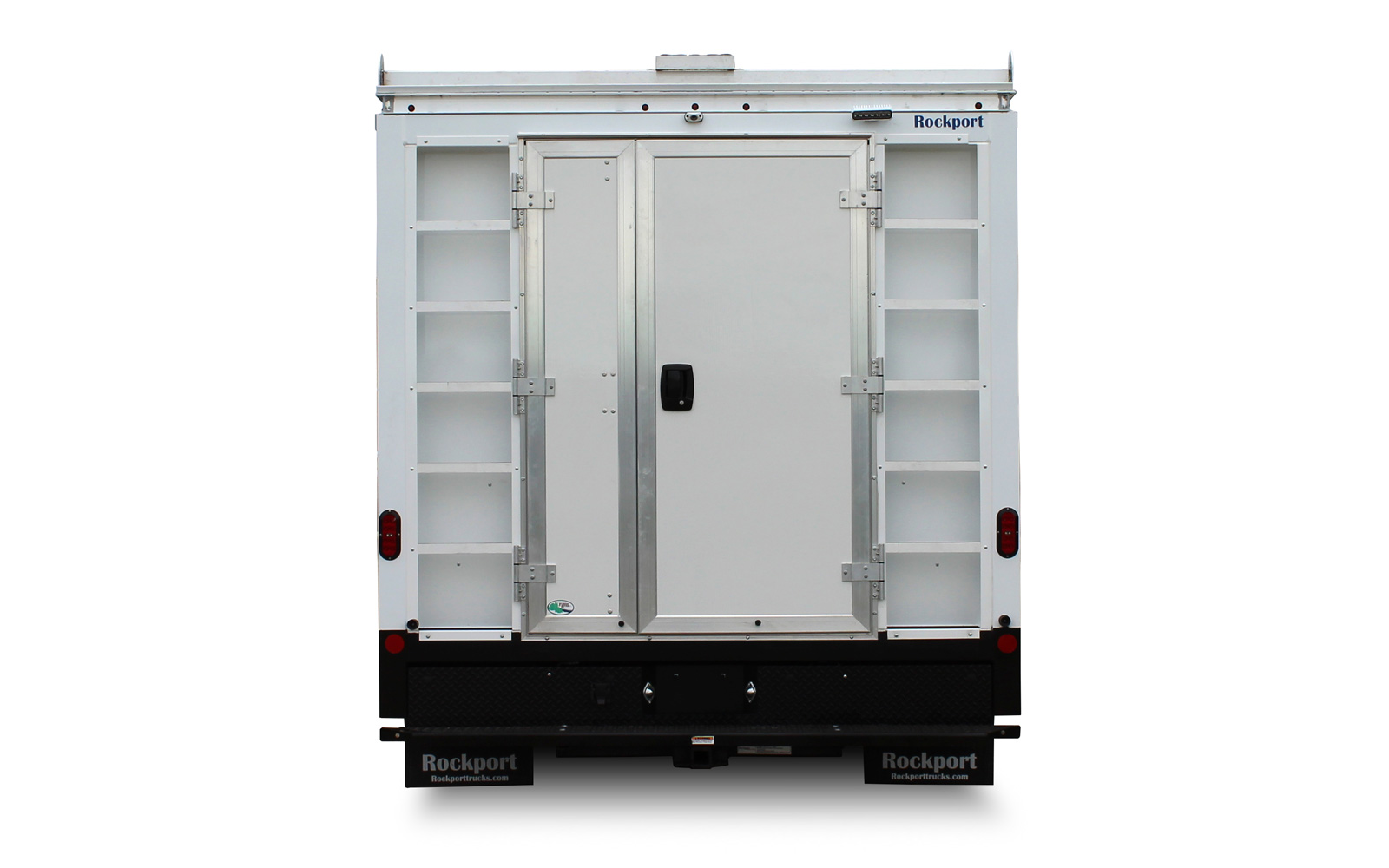

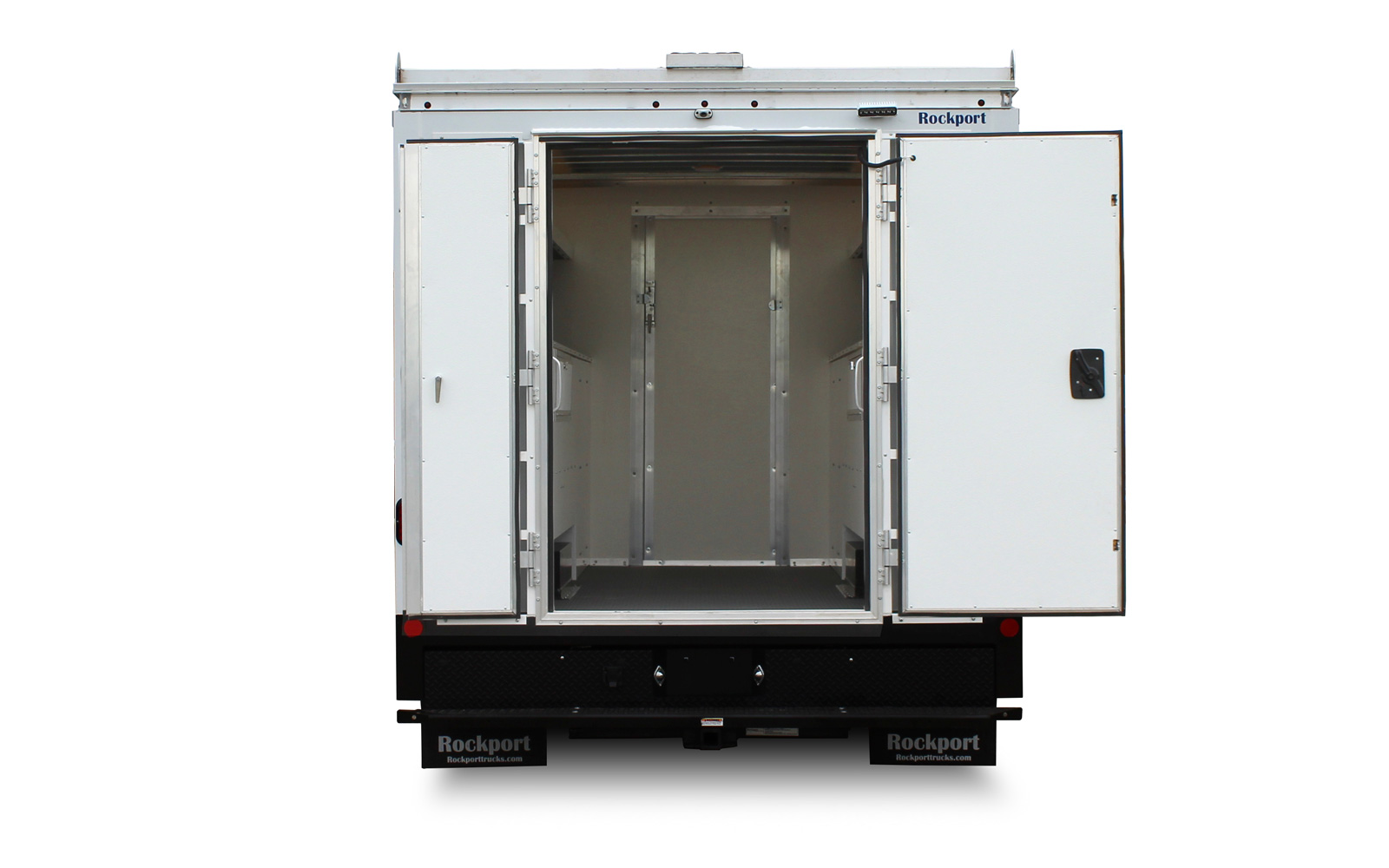

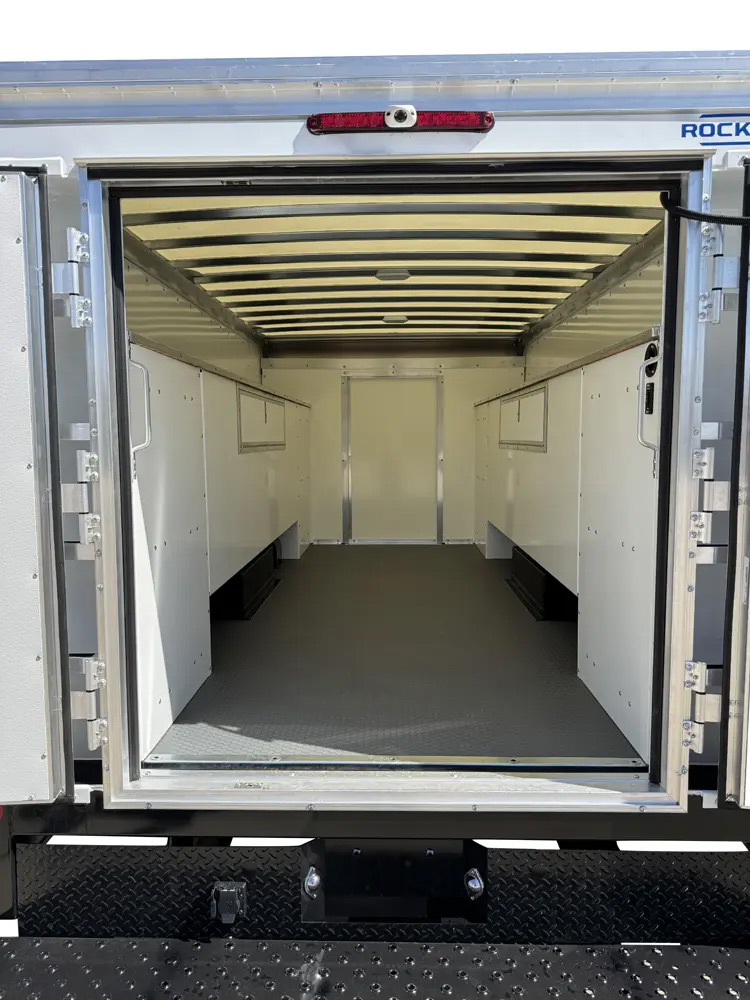

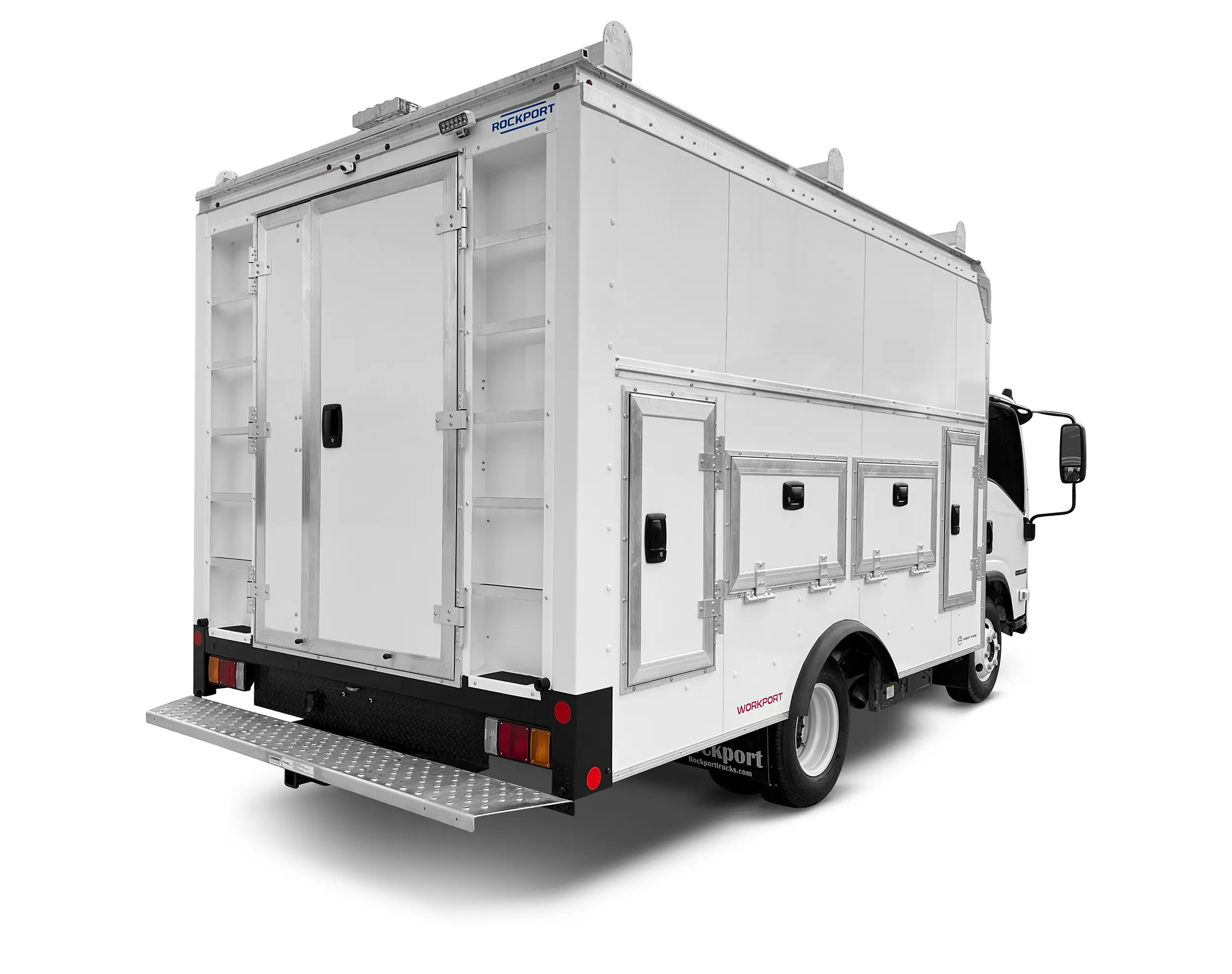

  • Swing Rear Doors, 47.5” Opening, 70/30

Options
  • Rear Roll-Up Door, 50” or Full Opening
  • Swing Rear Doors, 47.5” Opening, Twin 50/50
  • Swing Rear Doors, Full Width 50/50, FRP with Cam-Bar or Dead Bolt Locks
  • Swing Rear Doors, Full Width Bi-Fold Doors, FRP with Cam-Bar Locks
  • Insulated Rear Roll-Up Door
  • Enforcer Lock for Roll-Up Door
  • Windows, 12” X 18”
Options
  • Side Swing Door with Stepwell, 32” or 36”, Roadside and/or Curbside - In Place of Front Double Vertical Compartment Configuration Only
  • Side Roll-Up Door 36”, Roadside and/or Curbside - In Place of Front Double Vertical Compartment Configuration Only
  • Pull-Out Side Steps - 1 or 2 Steps
  • Stepwell Cover
  • Windows, 12” X 18”
Standard

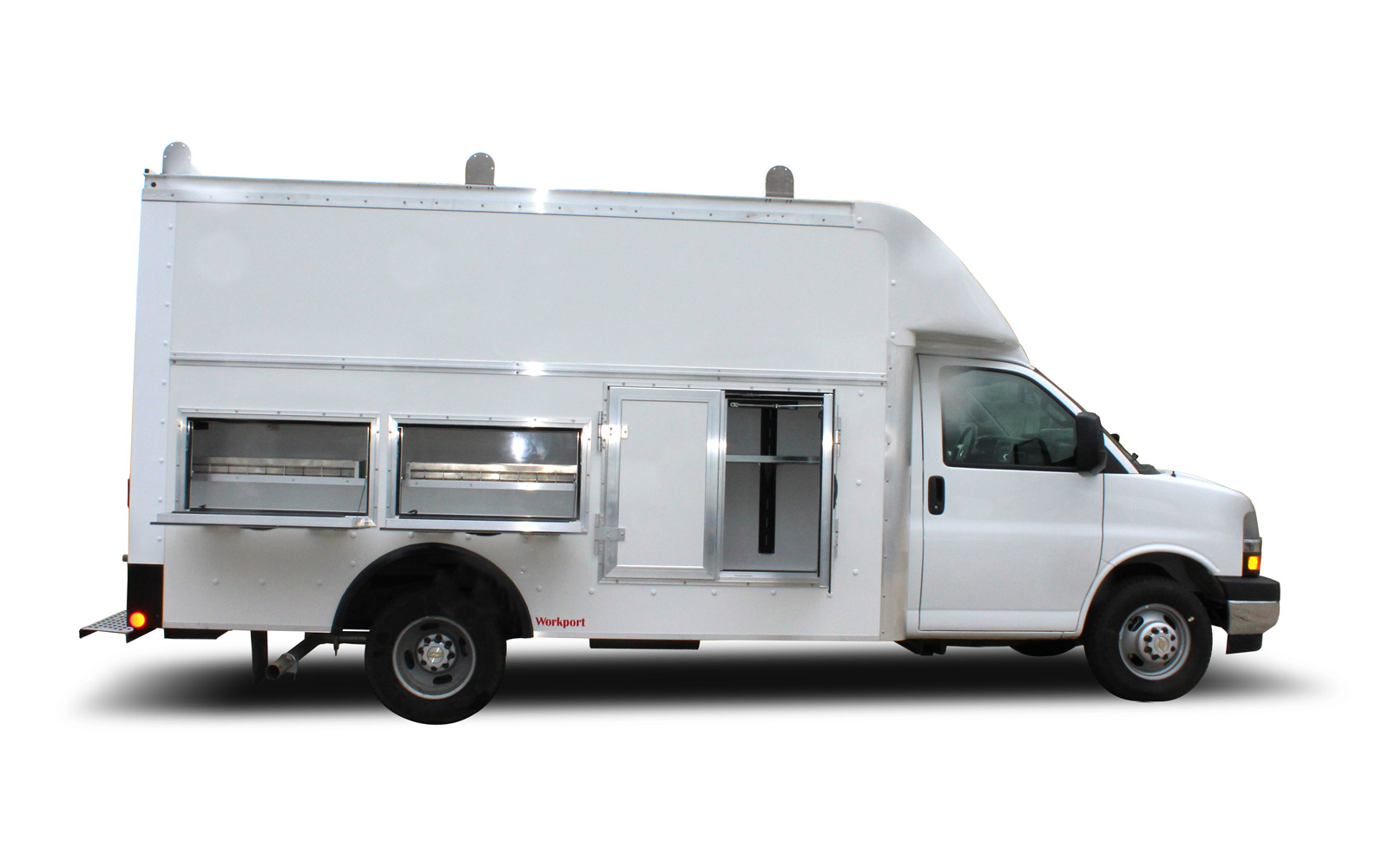

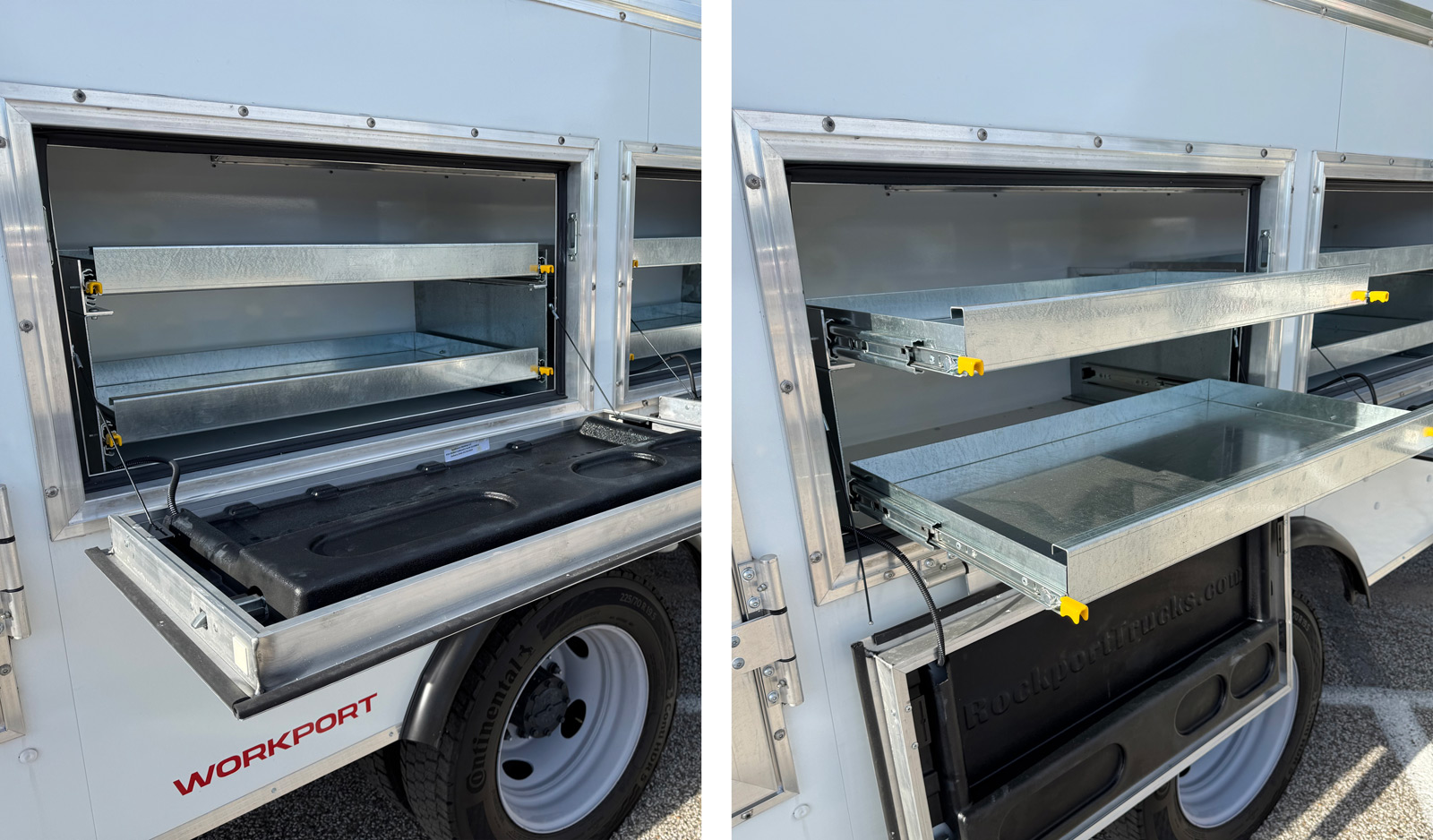

  • Vertical and Horizontal Access Compartments with Automotive Style Handles, ABS Door Covers
  • Drip Rails Above Compartments
  • Heavy Duty Hinges with Grease Zerks
  • Spring Loaded Closers on Vertical Doors
  • Interior Access to Horizontal Compartments

Options
  • Access Door to Horizontal Compartments
Standard
  • FMVSS Lights and Reflectors
  • Recessed Led Clearance Lights
  • 2 LED Cargo Dome Lamps with Switch (3-Way on Cutaway Only)
  • LED Tail Lights on Rear Vertical Posts (Availability on Select Models)

Options
  • LED Compartment Lighting
  • Electric Locking System for Compartment and Rear Door
  • Key Fob for Electrical Locking System
  • Additional LED Cargo Area Dome Lamps
  • LED Cargo Dome Lamps with Motion Sensors
  • Exterior LED Flood Lamps
  • Rear Back-Up Alarm
  • Rear Back-Up Camera System
  • Rear Proximity Sensors, Upper and Lower
  • Side Scene Lights
  • Strobe Lights
Standard
  • 3/8” FRP Sidewalls
  • Side Skirting to Conceal Frame and Components for Cleaner Appearance, Increased Fuel Economy
  • 12” Grab Handles at Rear Door

Options
  • Delete Compartments on Roadside or Curbside
  • Rub Rails, Aluminum
  • Crosswalk Mirror, Rear
  • Removeable Rear Access Ladder
  • 34” Grab Handles
Standard
  • Bulkhead Set Back for added Driver Seat Travel (Cutaways Only)
  • Sliding Bulkhead Door

Options
  • First Aid Kit
  • Fire Extinguisher, 10-B:C 2.5 lb. or 40-B:C 5.5 lb.
  • Safety Triangle Kit
  • Solid Bulkhead, No Pass Through
Standard
  • Interior Cargo Floor Length is True to Body Length
  • Crossmembers, 3 ½” Formed Steel
  • Rubberize Coin “Tuff Ply” Flooring over 1 1/8” Plywood
  • Wheel Wells, Coated Steel
  • Mud Flaps
  • Undercoating

Options
  • 1 1/8” Extruded Aluminum Plank Floor
  • 1 1/8” Hardwood Floor
  • Steel or Aluminum Treadplate Overlay
  • Polyurethane Floor Finish on Optional Hardwood Floor
  • Fuel Sending Unit Access Cover
Standard
  • Translucent Seamless Sheet with Anti-Snag Interior Roof Bows Located on 12” Centers
  • Roof Ladder Racks

Options
  • Aluminum Roof Skin
  • Ceiling Liner, Luan
  • Catwalk – Aluminum Gripstrut Centered on Ladder Racks
  • Delete Roof Ladder Racks
Options
  • E-Track – Surface Mounted to Compartments and/or Above Compartments
  • E-Track Shoring Bar
  • E-Track Ratchet Straps (2)
  • Floor Mounted Bull Rings
  • Tie Slats – Surface Mounted to Compartments and/or Above Compartments
  • D-Rings – Surface Mounted to Compartments and/or Above Compartments
Standard
  • Adjustable Compartment Shelf (Vertical Compartments Only)

Options
  • Horizontal Compartment Divider Bin Package
  • Additional Vertical Compartment Shelf

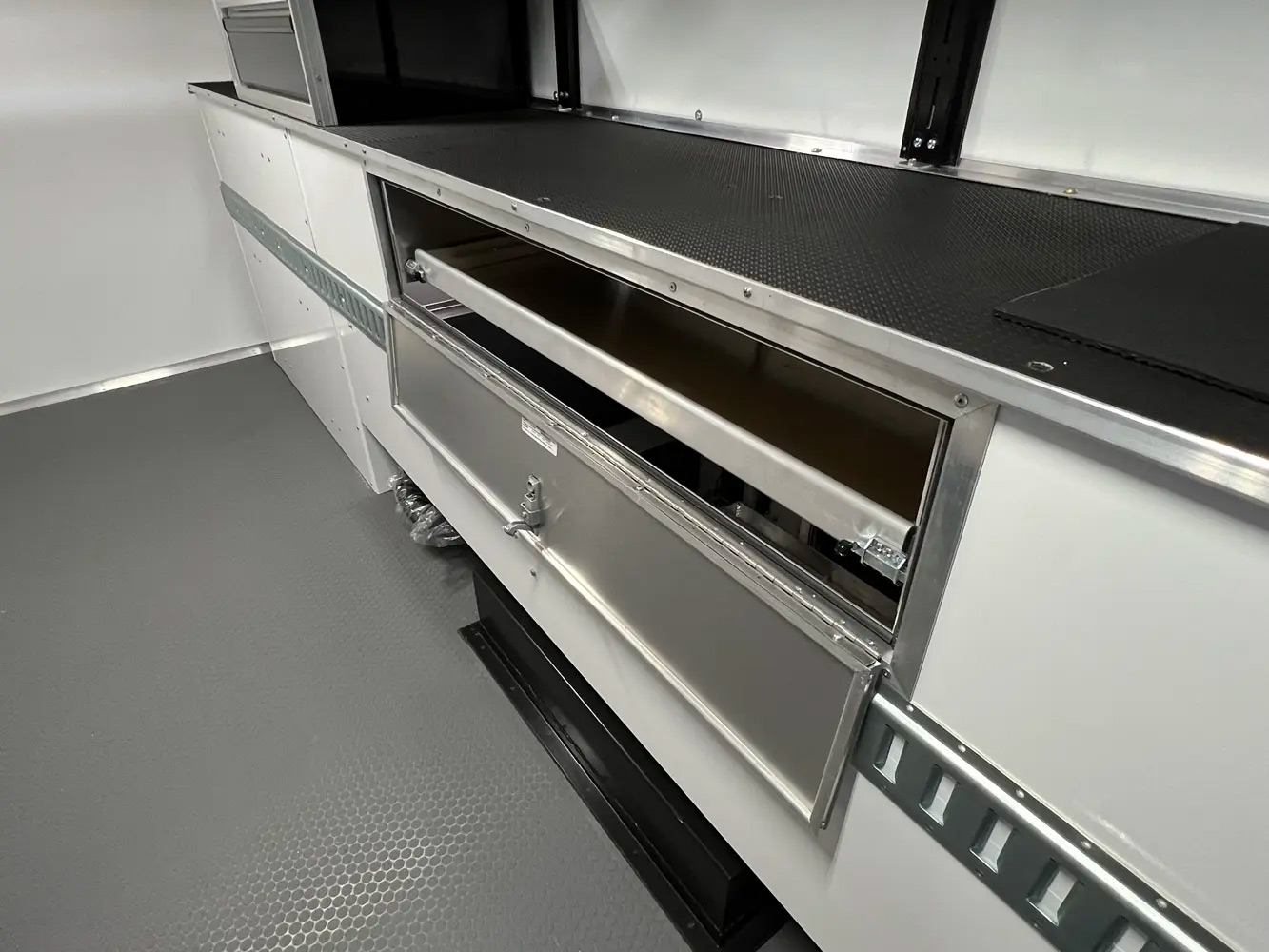

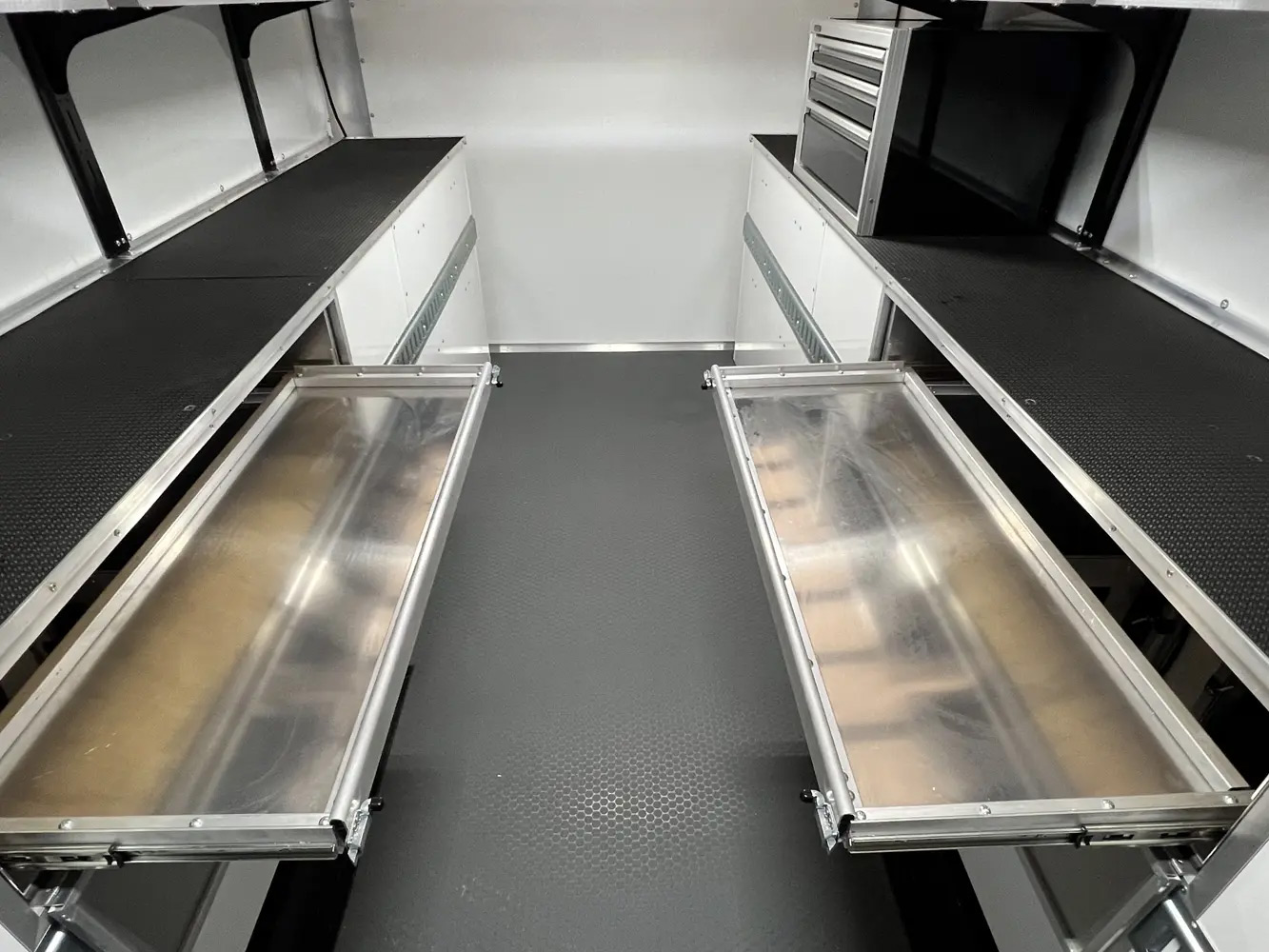

  • Adjustable Shelves Above Workbenches, 12” or 18” Deep, Steel and Wood
Standard
  • Roof Access Ladders, Dual Integrated
  • Coated Steel Rear Structure With 12-Gauge Sides and Header Coated White, 10-Gauge Footer
  • Flush Rear Sill with Drain Trough

Options
  • Delete - Roof Access Ladders, Dual Integrated
Options
  • Railgate or Tuck-away (Requires Optional Roll-Up Door)
  • Steel or Aluminum Platform
  • Cart Stops (Aluminum Only)
  • In-Cab Cutoff Switch
  • Remote Pendant
  • Above Bed Option (Railgate Only)
Options
  • Generator Compartment, Vented Door, Interior Insulation – Floor Mounted
  • Generator – Gas 4,000 -7,000 Watts
  • Generator – Diesel 5,000 – 10,000 Watts
  • Inverter 1,200 – 3,000 Watts
  • Shore Line Power Plug and Cord, 30 or 50 Amp, Breaker Box
  • Power Outlets, Interior and/or Exterior, 110V
  • Flood Lamps, LED, Exterior, 110V
  • Side Scene Lights, LED, Exterior, 110V
Options
  • Vent – 10” X 10” Louvered - Sidewall
  • Vent – 14” X 14” Roof, Power or Non-Power
  • Heater – Chassis Driven
  • Heat / AC – Chassis Driven
  • Heat / AC – Generator and/or Shore Power Driven
Options
  • Floor Insulation
  • Ceiling Foam Board Insulation
  • Front Radius and Corner Cap Insulation
  • Rear Header and Rear Insert Insulation
